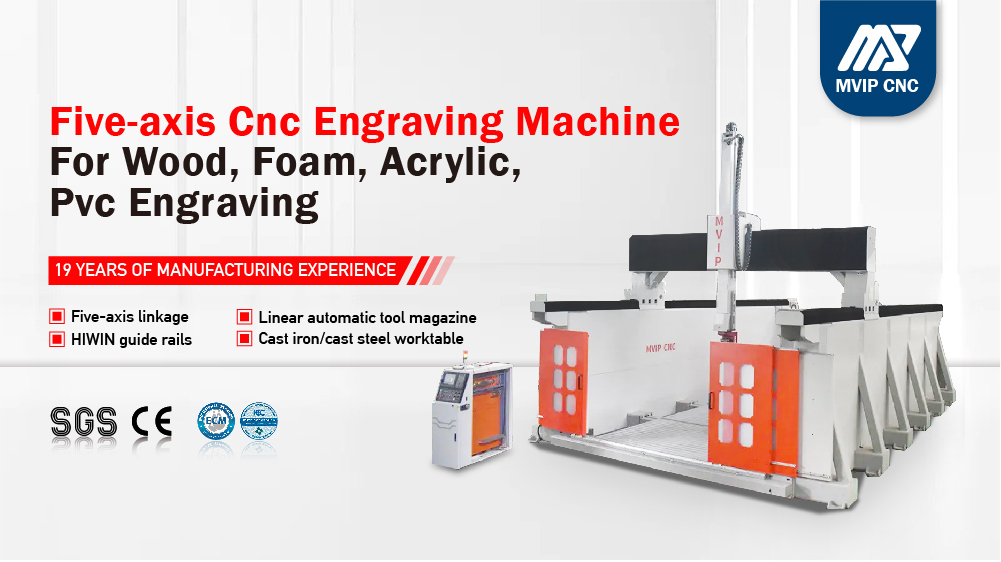

1. X Y Z B C axis working 5-axis cnc machining center for carving engraving ans milling

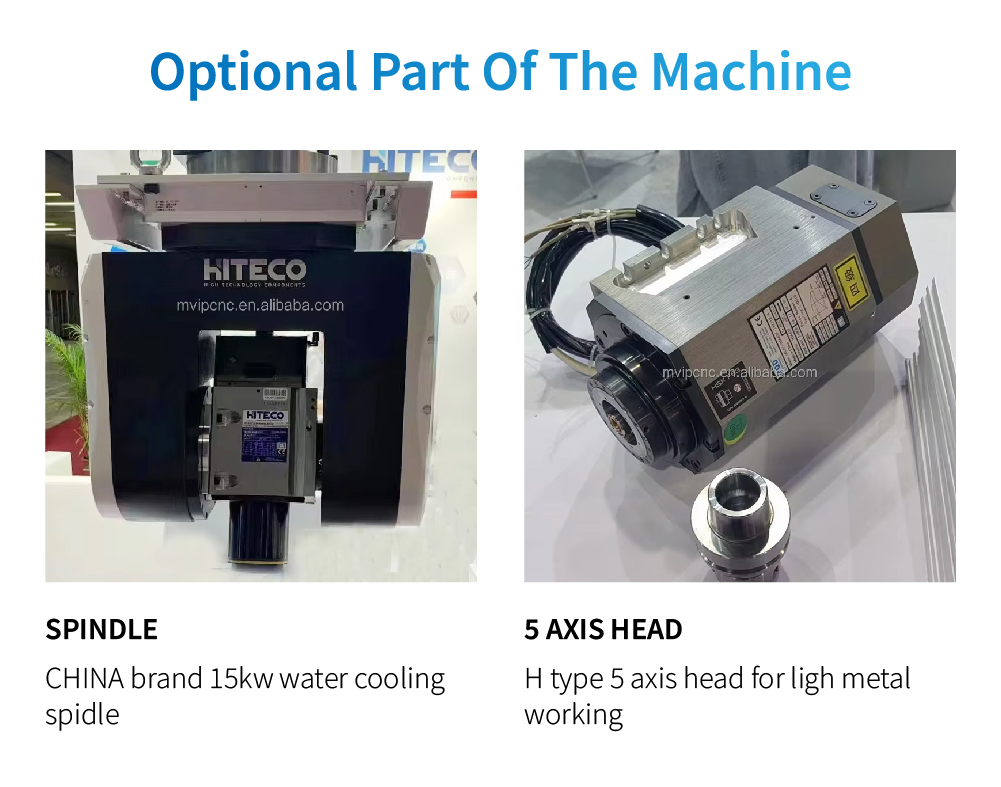

2. HITECO or Other brand 5 axis heads are optional parts. Rotating 300 degrees and 120 degrees .
3. Spindle 10kw 11kw and 15kw . Big power and water cooling .
4. Taiwan high accuracy HIWIN guide rails and sliders --dust-proof , good sealing, and small clearance.
5. Working size can be 6000*8000mm, 3000*6000mm, 2000*4000mm etc Z axis 2500mm, 2000mm, and 1200mm .
6. Cast iron or cast steel table , which make the whole machine working more stable .
7. Automatically oil lubrication system on the machine .
8. Yaskawa or Panasonic servo motors on X Y Z B and C axis .
9. X Y axis installed with high accuracy grinding rack and gear . Z axis moving with Ball screw.
10. Taiwan Syntec controller five axis simultaneously control-Support various types of five-axis compensation-Rotation tool center point feature (RTCP) for high precision processing on surface.&a
